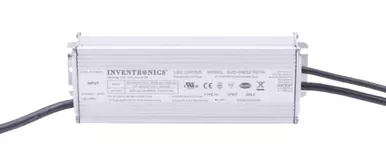

EUD-096S215DTA Inventronics Programmable Constant-Current LED Driver – 96W 2100mA Dimmable

Inventronics Programmable Constant Current LED Driver, 96W Max Power Output, Universal 120-277V Input,  Fixed Programmable Output Current 1750-2150mA (factory default 2100mA), 24-55Vdc Output, Analog 0-10V Dimming, Auxiliary Power

Inventronics 96W 2100mA Constant Current LED Driver

• Power Output: 96W
• Programmable Output Current: 1750-2150mA (factory default 2100mA)
• Always-On Auxiliary Power: 12V, 200mA
• Dim-to-Off with Low Standby Power
• Dimming: 0-10V, PWM, Multiple Timers
• High Level of Built-in Surge Protection:
• 6kV DM, 10kV CM
• Output Lumen Compensation
• Thermal Sensing and Protection for LED Module
• IP67 and UL Dry/Damp/Wet Location
• TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
• Class 2 and SELV Output

Spec Sheets

Inventronics EUD-096S215DTA Data Sheet
