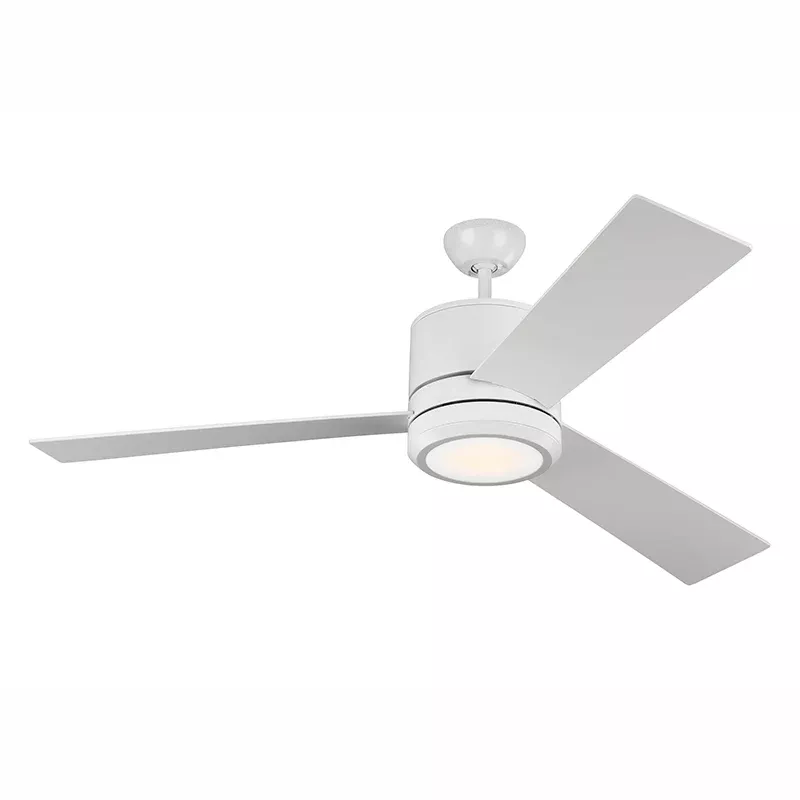

Similar to the popular Clarity hugger ceiling fan series, the 56” Vision Max by Monte Carlo is sleek and modern, but comes with a downrod to bring the fan down into the room when ceiling space allows.
Features:
- Finish/Blades:
- Matte White with Matte White Blades
- Brushed Steel with Silver / Light Grey Weathered Oak Blades
- Brushed Steel with Silver / American Walnut Blades
- Roman Bronze with Roman Bronze Blades
- Material: Steel, Plywood
- Shade: Frosted Acrylic
- Blade Pitch: 12º
- Voltage: 120V
- Three blades
- One Housing
- Reverse Switch: Manual
- This product may be mounted on a sloped ceiling
- Dual finished blades included
- A Finishing Cap is included if the light kit is unnecessary
- Designed for enclosed patios and bathrooms
- Triple capacitor, 4 speed reversible motor
- Precision balanced motor and blades for wobble-free operation
- Extra long 6.5 foot lead wire for use with long downrods
- Includes Wall Remote with downlight
- Blanking plate included for installations without light kit
Airflow/Energy Efficiency
- RPM (Low/Med/High): 36/117/174
- CFM (Low/Med/High): 1446/4378/5252
- Watts (Low/Med/High): 7.4/32.5/64
- Amps (Low/Med/High): 0.18//0.38/0.54
Dimensions:
- Blade Sweep: 56″
- Height: 14″
- Min. Ceiling Height: 8″
- Diameter of Housing: 9.3″
- Lead Wire Length: 78″
- Motor Type: 172 X 20 mm torque-induction
- Shade: 7″Dia. x 0.44″H
- Weight: 17.16 lb.
Lamping:
- 1 x 20W LED Integrated Array (Included)
- Dimmable
Documents
- Spec Sheet
- Instruction Sheet
