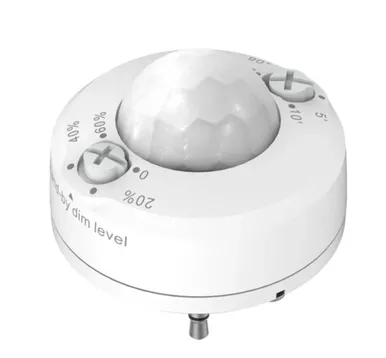

LHSDL001 TCP Daylight Sensor – Natural Light Detection

TCP Daylight Sensor, 120 Degree Detection, 15V Input, 0–10V Output, Current 20mA, Lux 50/200/500/800, IP20

TCP Daylight Sensor

When connected to the TCP HID Replacement Lamp, the sensor provides natural light detection. When the natural light level is above the Lux setting, the lamp will turn off. When the natural light level is below the Lux setting, the lamp will turn on for the preset Hold Time. The Daylight Sensor works with the TCP HID Corn Cobs, Area, and High Bay Lamps.

• TCP Daylight Sensor
• Only identifies natural light
• 15V input, 0-10V Output, 20mA Current
• Hold Time: 4hrs, 6hrs, 10hrs, Always On
• IP20

Read and understand all warnings and notes before proceeding with installation

Spec Sheets

TCP LHSDL001 Daylight Sensor Spec Sheet
