INVENTRONICS LED Driver Constant Current, 12 Watt Max Power Output, Universal 120-277V Input, Fixed Output Current 350mA, 17-34Vdc Output, Analog 0-10V Dimmable, IP20 Rated

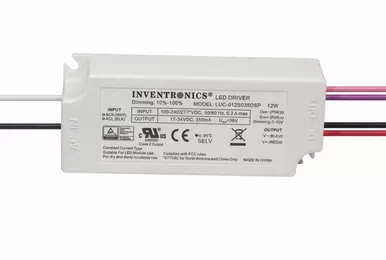

INVENTRONICS 12W 350mA Constant Current LED Driver – Plastic Case
Inventronics LUC series is designed to be highly efficient and reliable with open lamp, short circuit and over load protections.
- Total Max Power: 12 Watts
- Fixed Output Current: 350mA
- Input Voltage: 90-305 VAC
- IP20 Indoor
- Class 2
- High Efficiency
- Operating temperature range: -20°C to 85°C
- Polycarbonate Housing
- Dimmable with analog 0-10V dimmers (Compatible with Passive Dimmers) 10%-100% range
- All-Around Protection: OVP, SCP and Open Lamp Protection
Spec Sheets
Inventronics LUC-012S035DSP Spec Sheet
Inventronics Model Part Number Scheme
