INVENTRONICS LED Driver Constant Current, 12 Watt Max Power Output, Universal 120-277V Input, Fixed Output Current 700mA, 9-17Vdc Output, Non-dimmable, IP20 Rated
DISCONTINUED BY MANUFACTURER – Shipping Manufacturer’s Replacement that is exactly plus an optional dimming function. Please review and order here: LUC-012S070DSP

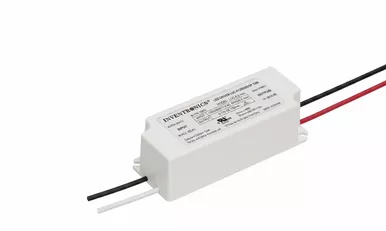

INVENTRONICS 12W 700mA Constant Current LED Driver – Non-Dimming Plastic Case
Inventronics LUC series is designed to be highly efficient and reliable with open lamp, short circuit and over load protections.
- Total Max Power: 12 Watts
- Fixed Output Current: 700mA
- Input Voltage: 90-305 VAC
- IP20 Indoor
- Class 2
- High Efficiency
- Operating temperature range: -20°C to 85°C
- Polycarbonate Housing
- Non-Dimmable
- All-Around Protection: OVP, SCP and Open Lamp Protection
Spec Sheets
Inventronics LUC-012S070SSP Spec Sheet
Inventronics Model Part Number Scheme
